Project features

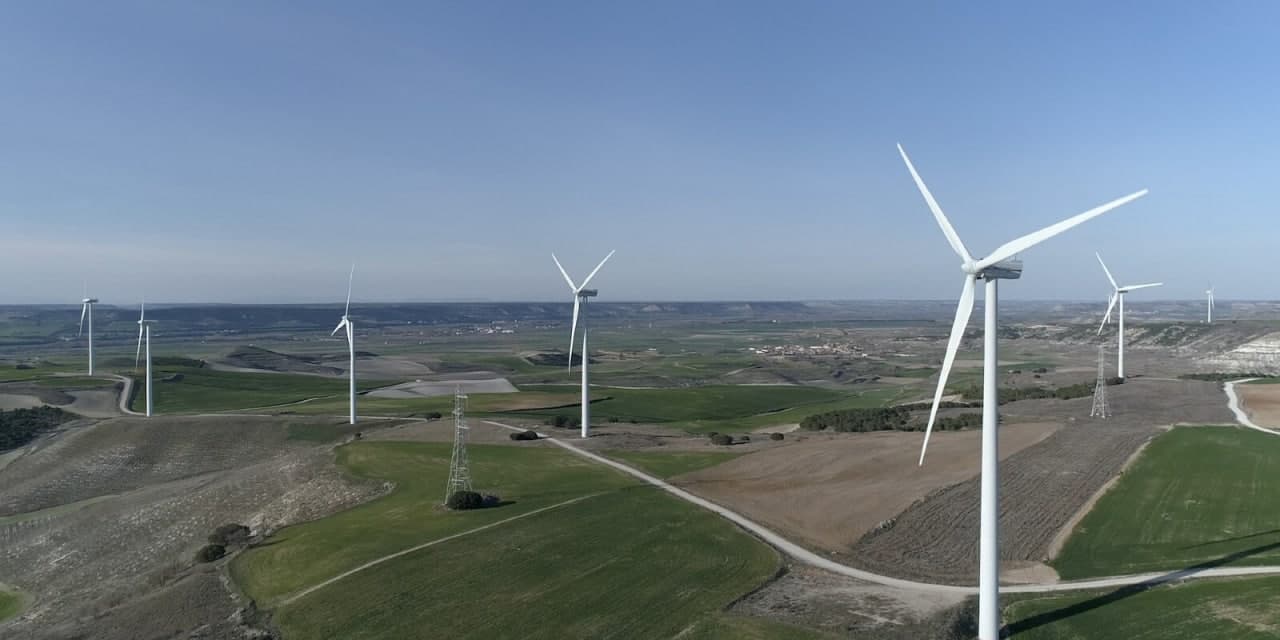

ACWA Power is planning to develop a 300 MW Wind Farm in Uzbekistan under a public-private partnership (PPP) arrangement. They have signed a 25-year Power Purchase Agreement (PPA) with NEGU, the off-taker. The proposed 300 MW Bash 2 shall be located in Bukhara district of Uzbekistan. The Wind Farm shall evacuate the power in the Uzbekistan grid system through a 25 km 500 kV overhead transmission line via Bash switching station transmission network. Juru, being closely involved in the development, design, and studies of the 500 MW Wind Farm project and 52 MW additional wind capacity project, is responsible for the grid integration studies of new 300 MW capacity.

Services provided

Task 1. Power Evacuation Study

• Development of ToR and facilitate its approval by JSC NEGU and SUE NDC;
• Upgrade of the transmission grid model to include planned changes in the grid;
• Overview analysis of the current grid generation and load state in the concerned power area;
• Performance of steady-state analysis of the grid before and after additional wind capacity connection including load flow, short-circuit calculation, short-circuit ratio analysis, N-1 and N-2 contingency, and voltage performance analysis;
• Conceptual design of the power evacuation infrastructure (SLD, layout);

Task 2. Grid Compliance Studies

• Preparation of the collection system of the additional capacity;
• Reactive power capability analysis of the additional capacity;
• Load flow studies to demonstrate reactive power capability;
• Low voltage ride through (LVRT) capability assessment;
• High voltage ride through (HVRT) capability assessment;
• Low frequency ride through (LFRT) analysis;
• High frequency ride through (HFRT) analysis;
• Performance of RoCoF withstand capability assessment;
• Active power generation capability assessment;
• Conducting a harmonic investigation study;
• Defining list of additional power electronic equipment to meet grid requirements.

Task 3. Static and Dynamic Stability Studies

• Analyses of the impact of WPP connection on the static (steady-state) stability;
• Analyses of the impact of WPP connection on the system dynamic stability;
• Definition of principles and location of required ECA. Development of SLD of ECA organization after connection of WPP;
• Approval of Technical Conditions with NEGU/NDC
